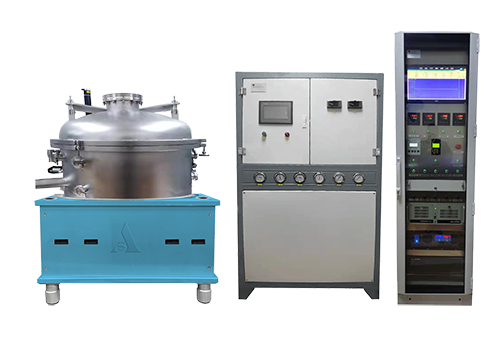

AS3690真空导电摩擦试验机

发布日期：2022-07-13点击量：491次

	试验机特点： 1. 主要由试验机主机和智能控制系统构成，配备有专业的测试分析软件。 2. 模拟实际工况，对试样的摩擦力、摩擦系数进行测定，获得可靠的试验数据，有效的对摩擦副不同材质和工艺的摩擦磨损性能进行评定，在实际生产中有广泛的应用前景。 3. 通过微机控制系统进行操作试验，可在一定范围内实现试验加载力、试验速度、试验时间、润滑介质的单因素控制，实现摩擦力、摩擦系数等数据的实时采集、分析处理、数据曲线显示、输出、存储。 4. 操作便捷，数据可靠，性能稳定，重复性好，检测精度高，是科研、质检机构、实验室研究的试验设备
技术规格
真空舱尺寸：Φ1000×370（mm×mm）	真空度：最低到1.0×10 ^-4Pa
导电滑环变形范围：0~4mm	主轴转速：0~1000rpm
试验温度：-50~150 ℃	温度分布：外环温度、环境温度
载流：0~40A	电压：0~100V
最大使用功率：30kw	工作电压：380V
固定样品环尺寸：Φ24×Φ25×5、Φ36×Φ37×5、Φ99×Φ100×5mm	数据处理：专用的测试分析软件
载流模块：测试摩擦电流：20A 测试摩擦电压：200V 动态原位、同步、实时摩擦系数、摩擦电流对应关系显示
